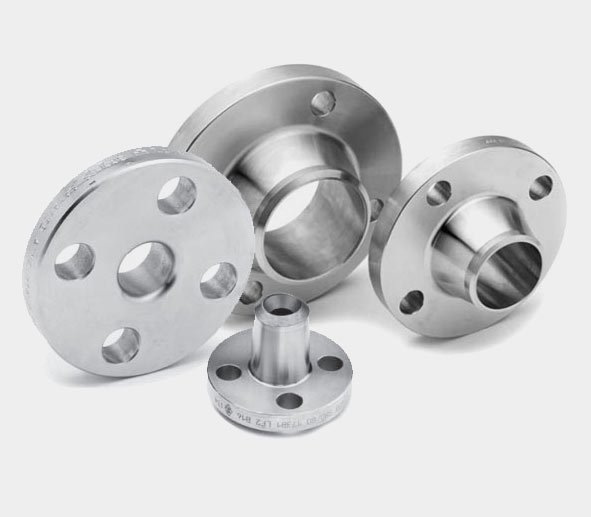

304 Stainless Steel Flanges
We are instrumental in offering high quality range of Stainless Steel 304 Flange to our clients. We execute the manufacturing process of these stainless-steel products at the most sophisticated production premise under proper supervision of industrial experts.
Features :
- Accurate dimension
- Long service life
- Excellent performance
- Low Maintenance
- Stainless Steel 304
- AASTM S30400 / S30403 Long Weld Neck Flanges
- JIS SUS304 / SUS304L Long Weld Neck Flanges
- BS 304S31 / 304S11 Long Weld Neck Flanges
- WERKSTOFF 1.4301 / 1.4306 Long Weld Neck Flanges
- DIN X5CrNi1810 / X2CrNi1911 Long Weld Neck Flanges
- NF Z7CN18-09 / Z3CN18-10 Long Weld Neck Flanges
- WSIS 142333 / 142352 Long Weld Neck Flanges
- UNI X5CrNi1810 / X2CrNi1811 Long Weld Neck Flanges
- IS 04Cr18Ni10 / 02Cr18Ni11 Long Weld Neck Flanges
Grade :
Specification :
Our 304 Stainless Steel Flanges are regularly exported to UAE, Bahrain, Saudi Arbia, Oman, Kuwait, Italy, Egypt, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, East Africa,
South Africa, Kazakhstan.
Stainless Steel 304 Grade Specification
Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
||
BS |
En |
No |
Name |
||||
304 |
S30400 |
304S31 |
58E |
1.4301 |
X5CrNi18-10 |
2332 |
SUS 304 |
Chemical Properties Of 304 Stainless Steel Flanges:
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
304 |
min. max. |
- 0.08 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 10.5 |
- 0.10 |
Mechanical Properties Of 304 Stainless Steel Flanges:
The mechanical properties of grade 304 Stainless Steel Flanges are displayed in the following table.
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
304 |
515 |
205 |
40 |
92 |
201 |
Physical Properties Of 304 Stainless Steel Flanges:
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
304 |
8000 |
193 |
17.2 |
17.8 |
18.4 |
16.2 |
21.5 |
500 |
720 |
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Testings (Destructive, Non Destructive):
- Positive Material Identification - PMI Testing
- Chemical Analysis - Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
