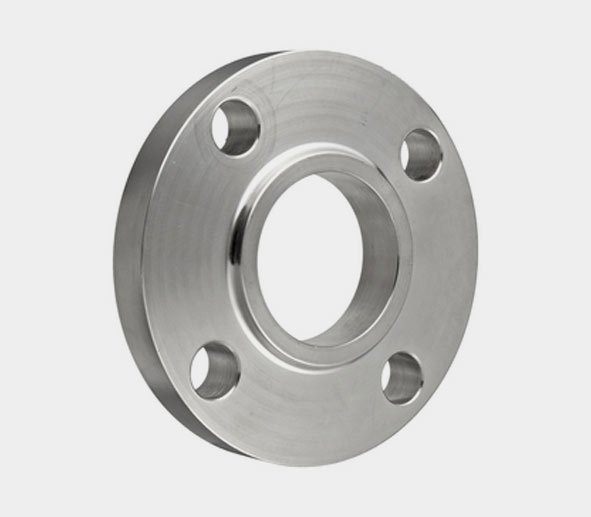

316 Stainless Steel Flanges
We Jainex steel and metal one of the renowed manufacturers and suppliers of Flanges that is made available in multiple ranges with size and minimum order. Manufactured as per the set industry standards, these dimensionally accurate and ruggedly constructed sorf Flanges are used in ultrahigh (UHV), prominent high (HV) and extreme high vacuum (XHV) applications. Before the final transmission, the series is checked for its perfection.
Features :
- Supreme corrosion resistance
- Tough in construction
- Lightweight
- Ranges: 15 NB up to 1500 NB in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS available with NACE MR 01-75
- Stainless Steel 316 provides higher creep, stress to rupture & tensile strength at elevated temperature.
Specification :
Jainex Steel and Metal Exports Stainless Steel 316L Flanges to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America,
South Africa, Kenya, Nigeria, Phillipines
Stainless Steel 316 flange Useful Information
| STANDARD | UNS | JIS | WERKSTOFF NR. | AFNOR | BS | GOST | EN |
| SS 316 | S31600 | SUS 316 | 1.4401 | Z7CND17‐11‐02 | 316S31 / 316S33 | - | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Chemical Properties Of 316 Stainless Steel Flanges:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 (S31600) |
0.08 max |
2.0 max |
1.00 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 11.0 max: 14.0 |
67.845 min |
316 Stainless Steel flange Mechanical Properties :
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
Physical Properties Of 316 Stainless Steel Flanges:
| Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/°F x 10-6 |
Specific Heat (BTU/lb/°F) |
Melting Range (°F) |
|---|---|---|---|---|---|---|
| 0.29 at 68°F | 100.8 at 68 212°F | 29.1 at 68°F | 29 | 8.9 at 32 – 212°F | 0.108 at 68°F | 2500 to 2550 |
| 9.7 at 32 – 1000°F | 0.116 at 200°F | |||||
| 11.1 at 32 – 1500°F |
Our 304L Stainless Steel Flanges are regularly exported to UAE, Bahrain, Saudi Arbia, Oman, Kuwait, Italy, Egypt, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, East Africa,
South Africa, Kazakhstan.
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Testings (Destructive, Non Destructive):
- Positive Material Identification - PMI Testing
- Chemical Analysis - Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
