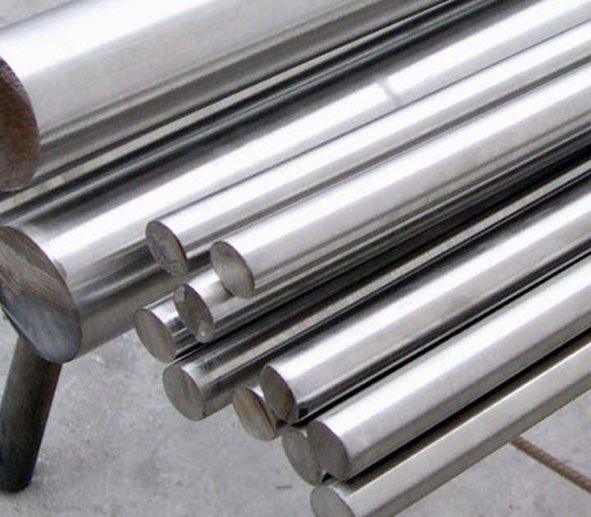

304/304L/304H Stainless Steel Round Bar
As an acclaimed undertaking of the business, Jainex Steel and Metal is included in offering an unlimited exhibit of Stainless Steel 304/304L/304H Round Bars (SS 304/304L/304H Round Bars) as a producer, exporter, stockiest and supplier to our residential and worldwide customers. Stainless Steel 304/304L/304H Bars (SS 304/304L/304H Bars) is austenitic steel by method for having non-attractive elements in the tempered structure that offers fantastic consumption imperviousness to both environmental and concoction exposures, in the organization of a raised imperviousness to oxidation.
Stainless Steel 304/304L/304H Rods (SS 304/304L/304H Rods) has great framing and great welding highlights.
As for national and worldwide nature of crude materials, we likewise offer these UNS S30400/S30403/S30409 Round Bars (otherwise called WNR 1.4301/1.4306 Bars) in tweaked sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.
304/304L/304H Stainless Steel Round Bar Specification
| Standard | 304/304H / 1.4301 304L /1.4307 |
| Designation | ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479 |
| Range | 3 MM TO 350 MM DIA |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Application | Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants. |
Chemical Properties Of 304/304L/304H Stainless Steel Round Bar:
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
304 304 L 304 H |
0.07max 0.03max 18.0-20.0 |
2.0max 2.0max 8.0-10.5 |
0.75max 0.75max 0.04-0.10 |
0.045max 0.045max 0.75 max |
0.03max 0.03max 2.0max |
18.0- 20.0 18.0-20.0 0.045max |
- - - |
8.0-10.5 8.0-12.0 0.03max |
- 0.10max 0.10max |
Mechanical Properties Of 304/304L/304H Stainless Steel Round Bar:
The mechanical properties of grade 304/304L/304H Stainless Steel Round Bar are displayed in the following table.
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
Rockwell B (HR B) max |
Brinell (HB) |
||||
304 |
75 |
30 |
40 |
92 |
201 |
304L |
70 |
25 |
40 |
92 |
201 |
304H |
75 |
30 |
40 |
92 |
201 |
304/304L/304H Stainless Steel Round Bar Physical Properties
| SS 304/304L | ||||||
|---|---|---|---|---|---|---|
| Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Jainex Steel & Metal exports Stainless Steel 304/304L/304H Round Bars & Rods to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam,
South Africa, Kazakhstan & Saudi Arabia.
304/304L/304H Stainless Steel Round Bar Application
- 304/304L/304H Stainless Steel Round Bar Used in Tractor
- 304/304L/304H Stainless Steel Round Bar Used in Automotive Trim
- 304/304L/304H Stainless Steel Round Bar Used in Stamped Machined Products
- 304/304L/304H Stainless Steel Round Bar Used in Cookware
- 304/304L/304H Stainless Steel Round Bar Used in Appliances
- 304/304L/304H Stainless Steel Round Bar Used in Kitchen
- 304/304L/304H Stainless Steel Round Bar Used in Foodservice Equipment
- 304/304L/304H Stainless Steel Round Bar Used in Sinks
- 304/304L/304H Stainless Steel Round Bar Used in Railway Cars
- 304/304L/304H Stainless Steel Round Bar Used in Trailers
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Testings (Destructive, Non Destructive):
- Positive Material Identification - PMI Testing
- Chemical Analysis - Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
