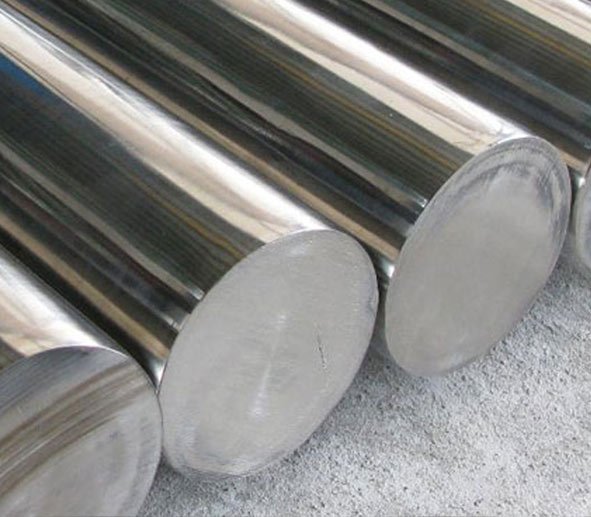

347/347H Stainless Steel Round Bar
As an acclaimed endeavor of the business, Jainex Steel and Metal is included in offering an immense exhibit of Stainless Steel 347/347H Round Bars(SS 347/347H Round Bars) as a maker, exporter, stockiest and supplier to our local and worldwide customers. Known for impervious to general corrosion, crevice corrosion, intergranular assault, setting and push consumption splitting, our scope of Stainless Steel 347/347H Bars (SS 347/347H Bars)are broadly utilized by our customers spread over the globe.
As an acclaimed endeavor of the business, Jainex Steel and Metal is included in offering an immense exhibit of Stainless Steel 347/347H Round Bars(SS
347/347H Round Bars) as a maker, exporter, stockiest and supplier to our local and worldwide customers. Known for impervious to general corrosion, crevice corrosion, intergranular assault, setting and push consumption splitting, our scope of Stainless Steel 347/347H Bars (SS 347/347H Bars)are broadly utilized by our customers spread over the globe.
347/347H Stainless Steel Round Bar Specification
| Standard | 347 / 1.4550 347H / 1.4961 |
| Designation | ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479 |
| Range | 3 MM TO 350 MM DIA |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Application | Chemical Processing, Food Processing – equipment and storage, Petroleum Refining – fluid catalytic cracking units, polythionic acid service, Pharmaceutical Production, Waste Heat Recovery – recuperators, |
Chemical Properties Of 347/347H Stainless Steel Round Bar:
Grade |
C |
Cr |
Mn |
Ni |
P |
S |
Si |
Cb/Ta |
|
304 304 H |
0.08max 0.04-0.10 |
17.0-20.0 17.0-20.0 |
2.0 max 2.0 max |
min: 9.0 max: 13.0 min: 9.0 max: 13.0 |
0.04 max 0.04 max |
0.30 max 0.30 max |
0.75 max 0.75 max |
min:10x C max: 1.0 min:10x C max: 1.0 |
Mechanical Properties Of 347/347H Stainless Steel Round Bar:
The mechanical properties of grade 347/347H Stainless Steel Round Bar are displayed in the following table.
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
Rockwell B (HR B) max |
Brinell (HB) |
||||
347/347H |
75 (515) |
30 (205) |
40 |
95 |
201 |
347/347H Stainless Steel Round Bar Physical Properties
| Density lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | 68-932°F | at 32 – 212°F | in tension (E) |
| 0.288 | 9.2 | 11.4 | 14.7 | 0.12 | 28 x 106 |
Jainex Steel & Metal exports Stainless Steel 304/304L/304H Round Bars & Rods to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam,
South Africa, Kazakhstan & Saudi Arabia.
347/347H Stainless Steel Round Bar Application
- 347/347H Stainless Steel Round Bar Used in Tractor
- 347/347H Stainless Steel Round Bar Used in Automotive Trim
- 347/347H Stainless Steel Round Bar Used in Stamped Machined Products
- 347/347H Stainless Steel Round Bar Used in Cookware
- 347/347H Stainless Steel Round Bar Used in Appliances
- 347/347H Stainless Steel Round Bar Used in Kitchen
- 347/347H Stainless Steel Round Bar Used in Foodservice Equipment
- 347/347H Stainless Steel Round Bar Used in Sinks
- 347/347H Stainless Steel Round Bar Used in Railway Cars
- 347/347H Stainless Steel Round Bar Used in Trailers
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Testings (Destructive, Non Destructive):
- Positive Material Identification - PMI Testing
- Chemical Analysis - Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
