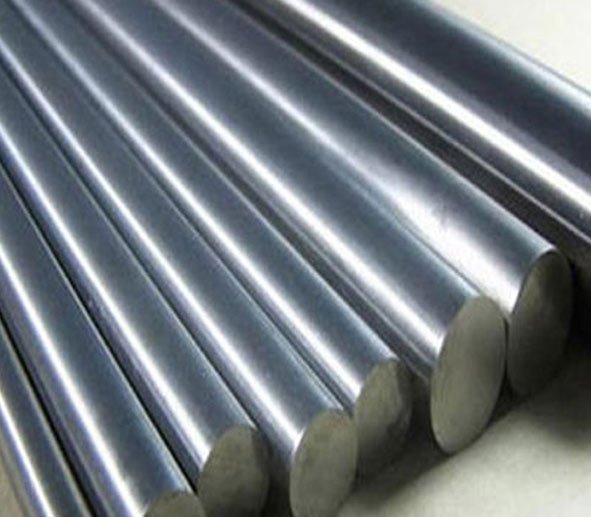

309/310/310S Stainless Steel Round Bar
As an acclaimed venture of the business, Jainex Steel and Metal is included in offering an incomprehensible exhibit of Stainless Steel 309/310/310S Round Bars (SS 309/310/310S Round Bars) as a producer, exporter, stockiest and supplier to our household and worldwide customers. Stainless Steel 309/310/310S Bars (SS 309/310/310S Bars) are utilized for various commercial enterprises, for example, Food Processing, Chemical Industry, Brewing, Pharmaceuticals, Petrochemicals, and then some. Stainless Steel 309/310/310S Rods (SS 309/310/310S Rods) is utilized for a few applications, for example, in Condensers, Pressure Vessels, Heat Exchangers, Flanges and fittings, Pipelines, Valves, etc .
With respect to national and universal nature of raw materials, we likewise offer these UNS S30900/S31000/S31008 Round Bars (otherwise called WNR 1.4845 Bars) in modified sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.
309/310/310S Stainless Steel Round Bar Specification
| Standard | 310 / 1.4841 310S / 1.4845 309 /1.4828 |
| Designation | ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479 |
| Range | 3 MM TO 350 MM DIA |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Application | Furnace parts, Oil burner parts, Carburising boxes, Heat Treatment baskets and jigs, Heat Exchangers, Welding filler wire and electrodes. |
Chemical Properties Of 309/310/310S Stainless Steel Round Bar:
| SS 310 | SS 310S | SS 309 | |
|---|---|---|---|
| Ni | 19 – 22 | 19 – 22 | 14 |
| Cr | 24 – 26 | 24 – 26 | 23 |
| C | 0.25 max | 0.08 max | 0.20 |
| Fe | Balance | 0.20 | |
| Mn | 2 max | 2 max | 2 max |
| Si | 1.50 max | 1.50 max | 1 |
| S | 0.03 max | 0.03 max | 0.30 max |
| P | 0.045 max | 0.045 max | 0.045 max |
Mechanical Properties Of 309 Stainless Steel Round Bar:
The mechanical properties of grade 309 Stainless Steel Round Bar are displayed in the following table.
| Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|
| 40 | 30 | 40 | 217 |
Mechanical Properties Of 310/310S Stainless Steel Round Bar:
|
Tensile Strength |
Psi – 75000 , MPa – 515 |
|---|---|
|
Yield Strength (0.2%Offset) |
Psi – 30000 , MPa – 205 |
|
Elongation |
35 % |
Physical Properties of SS 310/310S Stainless Steel Round Bar
|
Density |
8.0 g/cm3 |
|---|---|
|
Melting Point |
1454 °C (2650 °F) |
Physical Properties of SS 309 :
| Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
|---|---|---|---|---|---|---|
| at 68°F: 0.285 | 9.0 at 32- 212°F | 30.7 at 68°F | 28.5 | 8.28 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500-2590 |
We are exports Stainless Steel 310/310S Round Bars & Rods to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam,
South Africa, Kazakhstan & Saudi Arabia.
309/310/310S Stainless Steel Round Bar Application
- 309/310/310S Stainless Steel Round Bar Used in Tractor
- 309/310/310S Stainless Steel Round Bar Used in Automotive Trim
- 309/310/310S Stainless Steel Round Bar Used in Stamped Machined Products
- 309/310/310S Stainless Steel Round Bar Used in Cookware
- 309/310/310S Stainless Steel Round Bar Used in Appliances
- 309/310/310S Stainless Steel Round Bar Used in Kitchen
- 309/310/310S Stainless Steel Round Bar Used in Foodservice Equipment
- 309/310/310S Stainless Steel Round Bar Used in Sinks
- 309/310/310S Stainless Steel Round Bar Used in Railway Cars
- 309/310/310S Stainless Steel Round Bar Used in Trailers
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Testings (Destructive, Non Destructive):
- Positive Material Identification - PMI Testing
- Chemical Analysis - Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
